Short description

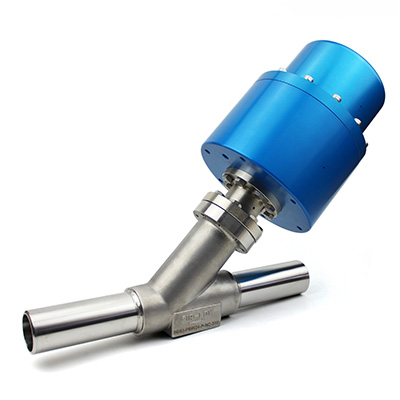

Stainless Steel High-Flow Bellows-Sealed Valves, 29 Cv, 1 in. Fractional Tube Butt Weld Part #: BBS1-FFBW16-M4-M4-10-316L-LD
PT Jacesti Antamani — official sole agent of Hikelok for Indonesia.
Product details
| Attribute | Bellows- Sealed Valve |
|---|---|
| Body Material | 316L Stainless Steel |
| Connection 1 Size | 1 in. |
| Connection 1 Type | Fractional Tube Butt Weld |
| Connection 2 Size | 1 in. |
| Connection 2 Type | Fractional Tube Butt Weld |
| Tip Type | PCTFE |
| CV Maximum | 29 |
| Seat- Orifice | 1.06 in /27.1 mm |
| Upstream Purge Valve & Purge Port | None |
| Valve& Port Size | 1/4 Male GFS Fitting |
| Downstream Purge Valve & Purge Port | None |
| Surface Finish | 0.25Ra max-EP |
| Handle Wheel | Black |
| Lock | Handle Lockout Clear Clam Shell |
