Short description

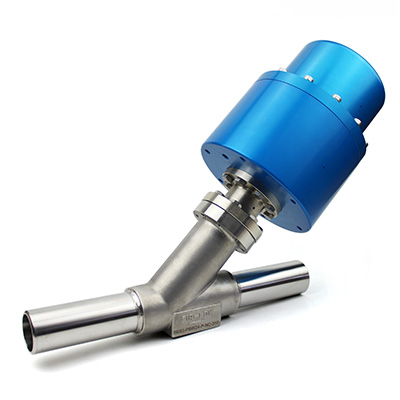

Stainless Steel High-Flow Bellows-Sealed Valves, 452 Cv, 3 in. Fractional Tube Butt Weld Part #: BBS1-FFBW48-M4-M4-10-PD-316L-LD
PT Jacesti Antamani — official sole agent of Hikelok for Indonesia.
Product details
| Attribute | Bellows- Sealed Valve |
|---|---|
| Body Material | 316L Stainless Steel |
| Connection 1 Size | 3 in. |
| Connection 1 Type | Fractional Tube Butt Weld |
| Connection 2 Size | 3 in. |
| Connection 2 Type | Fractional Tube Butt Weld |
| Tip Type | PCTFE |
| CV Maximum | 452 |
| Seat- Orifice | 5.42 in /137.7 mm |
| Upstream Purge Valve & Purge Port | None |
| Valve& Port Size | 1/4 Male GFS Fitting |
| Downstream Purge Valve & Purge Port | None |
| Surface Finish | 0.25Ra max-EP |
| Handle Wheel | Double Acting |
| Lock | Handle Lockout Clear Clam Shell |
