Short description

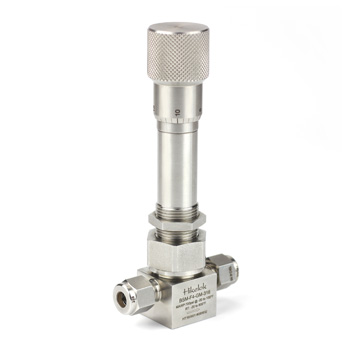

Bellows-Sealed Metering Valves,1/4 in Male GFS Fitting Part #: BSM-GFS4-GM-316
PT Jacesti Antamani — official sole agent of Hikelok for Indonesia.
Product details
| Attribute | Bellows-Sealed Metering Valves |
|---|---|
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/4 in |
| Connection 1 Type | Male GFS Fitting |
| Connection 2 Size | 1/4 in |
| Connection 2 Type | Male GFS Fitting |
| Body-to Bellows Seal | Gasket |
| CV Maximum | 0.019 |
| Orifice | 0.057in /1.4 mm |
| Stem Tip | Metering |
| Flow Pattern | 2-Way, Straight |
| Temperature Rating | Max700 PSIG (48.2bar) |
| Working Pressure Rating | 20℉ to 900℉ (-28℃ to 482 ℃) |
| Testing | Helium testing |
| Cleaning Process | Standard Cleaning and Packaging (CP-01) |
