Short description

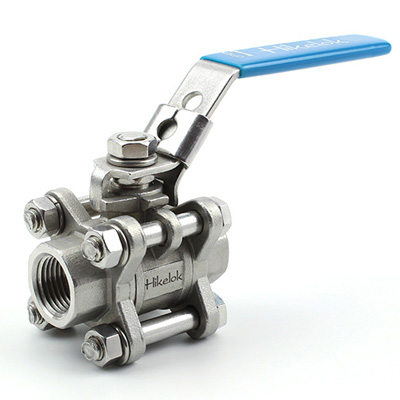

Stainless Steel General Application BV5 Series Ball Valve, 13.0 Cv, 1/2 in. Female NPT Part #: BV5-FNPT8-T15-316
PT Jacesti Antamani — official sole agent of Hikelok for Indonesia.
Product details
| Attribute | Ball Valves |
|---|---|
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/2 in. |
| Connection 1 Type | Female NPT |
| Connection 2 Size | 1/2 in. |
| Connection 2 Type | Female NPT |
| Seat Material | PTFE |
| CV Maximum | 13.0 |
| Orifice | 0.591 in. /15.0 mm |
| Handle Color | Blue |
| Flow Pattern | 2-Way, Straight |
| Temperature Rating | -20℉ to 450℉ (-28℃ to 232℃) |
| Working Pressure Rating | Max 1000 PSIG (68.9 bar) |
| Testing | Gas Pressure Test |
| Cleaning Process | Standard Cleaning and Packaging (CP-01) |
