Short description

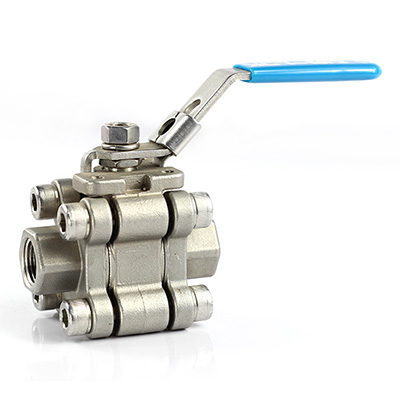

Stainless Steel 3-piece High Pressure BV6 Series Ball Valve, 38.0 Cv, 1 in. Female NPT Part #: BV6-FNPT16-P22-316
PT Jacesti Antamani — official sole agent of Hikelok for Indonesia.
Product details
| Attribute | Ball Valves |
|---|---|
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1 in. |
| Connection 1 Type | Female NPT |
| Connection 2 Size | 1 in. |
| Connection 2 Type | Female NPT |
| Seat Material | PEEK |
| CV Maximum | 38.0 |
| Orifice | 0.875 in. /22.2 mm |
| Handle Color | Blue |
| Flow Pattern | 2-Way, Straight |
| Temperature Rating | -20℉ to 450℉ (-28℃ to 232℃) |
| Working Pressure Rating | Max 3000 PSIG (206 bar) |
| Testing | Gas Pressure Test |
| Cleaning Process | Standard Cleaning and Packaging (CP-01) |
