Short description

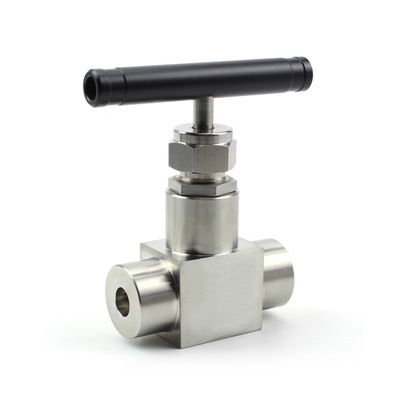

Stainless Steel NV2 Series Needle Valve, 0.35 Cv, 1/4 in. Fractional Tube Socket Weld Part #: NV2-FSW4-04-316
PT Jacesti Antamani — official sole agent of Hikelok for Indonesia.
Product details
| Attribute | Needle Valves |
|---|---|
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Fractional Tube Socket Weld |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Fractional Tube Socket Weld |
| Seat Material | Same as body |
| CV Maximum | 0.35 |
| Orifice | 0.157 in /4.0 mm |
| Tip Type | Blunt |
| Tip Material | Same as body |
| Packing Material | PTFE |
| Panel Mounting | No |
| Handle Color | Black |
| Flow Pattern | Straight |
| Temperature Rating | Max 10000 PSIG (689 bar) |
| Working Pressure Rating | -65℉ to 1200 ℉ (-53 ℃ to 648 ℃) |
| Testing | Gas Pressure Test |
| Cleaning Process | Standard Cleaning and Packaging (CP-01) |
