Deskripsi singkat

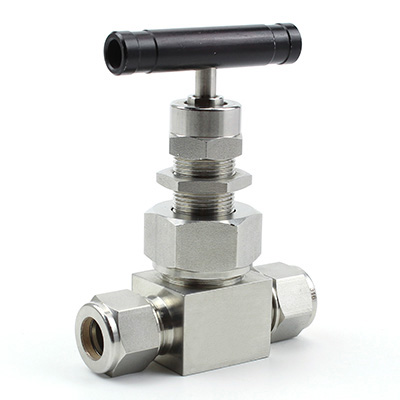

Stainless Steel NV3 Series Needle Valve, 0.8 Cv, 14mm Nut+Gasket+Metric Bulge Nipple Part #: NV3-UGM14-06-316
PT Jacesti Antamani — one solo agent Hikelok untuk Indonesia.
Detail produk
| Attribute | Needle Valves |
|---|---|
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 14mm |
| Connection 1 Type | Nut+Gasket+Metric Bulge Nipple |
| Connection 2 Size | 14mm |
| Connection 2 Type | Nut+Gasket+Metric Bulge Nipple |
| Seat Material | Same as body |
| CV Maximum | 0.8 |
| Orifice | 0.236 in /6.0 mm |
| Tip Type | Blunt |
| Tip Material | Same as body |
| Packing Material | PTFE |
| Panel Mounting | No |
| Handle Color | Black |
| Flow Pattern | Straight |
| Temperature Rating | Max 6000 PSIG (413 bar) |
| Working Pressure Rating | -65℉ to 1200 ℉ (-53 ℃ to 648 ℃) |
| Testing | hydraulic test |
| Cleaning Process | Standard Cleaning and Packaging (CP-01) |
