Short description

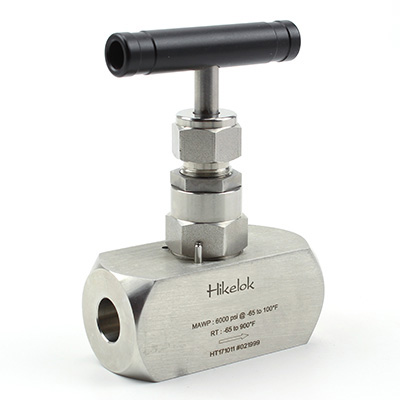

Stainless Steel NV8 Series Needle Valve, 5.65 Cv, 3/4 in. Pipe Socket Weld Part #: NV8-PSW12-20-316
PT Jacesti Antamani — official sole agent of Hikelok for Indonesia.
Product details
| Attribute | Needle Valves |
|---|---|
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 3/4 in. |
| Connection 1 Type | Pipe Socket Weld |
| Connection 2 Size | 3/4 in. |
| Connection 2 Type | Pipe Socket Weld |
| Seat Material | Same as body |
| CV Maximum | 5.65 |
| Orifice | 0.787in /20.0 mm |
| Tip Type | Blunt |
| Tip Material | Same as body |
| Packing Material | PTFE |
| Panel Mounting | No |
| Handle Color | Black Aluminum Bar |
| Flow Pattern | Straight |
| Working Pressure Rating | Max 6000 PSIG (413 bar) |
| Temperature Rating | -65℉ to 1200 ℉ (-53 ℃ to 648 ℃) |
| Testing | Gas Pressure Test |
| Cleaning Process | Standard Cleaning and Packaging (CP-01) |
