Deskripsi singkat

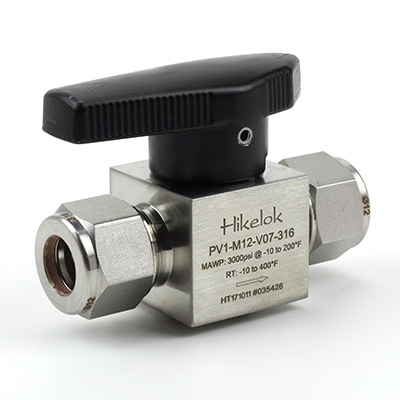

Stainless Steel PV1 Series Plug Valve, 6.4 Cv, 10 mm Hikelok Tube Fitting Part #: PV1-M10-V07-316
PT Jacesti Antamani — one solo agent Hikelok untuk Indonesia.
Detail produk
| Attribute | Plug Valves |
|---|---|
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 10 mm |
| Connection 1 Type | Hikelok® Tube Fitting |
| Connection 2 Size | 10 mm |
| Connection 2 Type | Hikelok® Tube Fitting |
| Seat Material | Fluorocarbon FKM |
| CV Maximum | 6.4 |
| Orifice | 0.283 in. /7.2 mm |
| Handle Color | Black |
| Flow Pattern | 2-Way, Straight |
| Temperature Rating | -10℉ to 400℉(-23℃ to 204℃) |
| Working Pressure Rating | Max 3000 PSIG (207 bar) |
| Testing | Gas Pressure Test |
| Cleaning Process | Standard Cleaning and Packaging (CP-01) |
