Short description

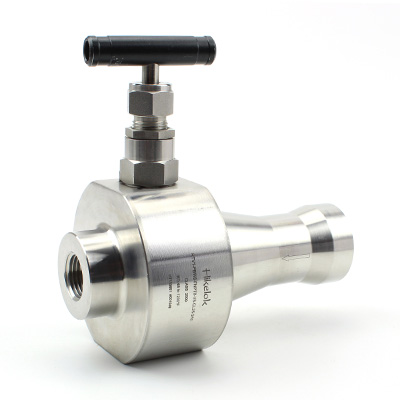

Stainless Steel RTV1 Series Root Valves, 3/4 in. Pipe Butt Weld x 1/2 in. RF Flange Part #: RTV1-PBW12-RF8600-4P-316
PT Jacesti Antamani — official sole agent of Hikelok for Indonesia.
Product details
| Attribute | Root Valves |
|---|---|
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 3/4 in. |
| Connection 1 Type | Pipe Butt Weld |
| Connection 2 Size | 1/2 in. |
| Connection 2 Type | RF Flange |
| ASME Class | Class 600 |
| Packing Material | Graphite |
| Vent Type and Size | 1/4 in. Female NPT with Plug |
| Orifice | 0.157 in. /4.00 mm |
| Temperature Rating (PTFE Packing) | -65℉ to 450℉ (- 54℃ to 232℃) |
| Temperature Rating (Graphite Packing) | -65℉ to 1200℉ (- 54℃ to 649℃) |
| Working Pressure Rating | Max 10000 PSIG (689bar) |
| Testing | Gas Pressure Test |
| Cleaning Process | Standard Cleaning and Packaging (CP-01) |
